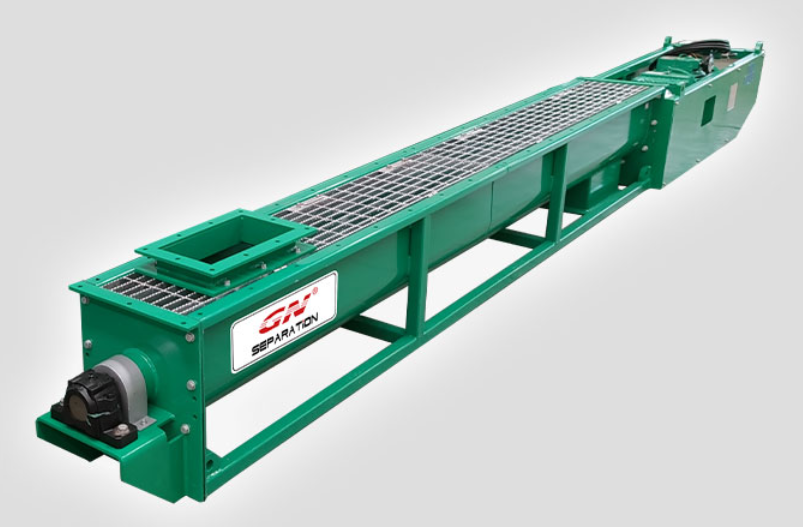

At GN Separation, we pride ourselves on providing top-tier industrial bulk material handling solutions. One of our flagship products, the GN U-Type Screw Conveyor, has been a benchmark of reliability and performance for over a decade. This versatile equipment is designed to move materials efficiently in various settings, from horizontal and inclined to vertical transport.

Key Features of GN U-Type Screw Conveyor

1. Proven Performance: With over ten years in the industry, the GN U-Type Screw Conveyor has established itself as a dependable choice for bulk material handling. Its design has been refined to ensure optimal performance in a range of applications.
2. Versatile Material Handling: Whether you’re dealing with wet or dry materials, the GN U-Type Screw Conveyor can handle them with ease. It is capable of conveying, feeding, distributing, collecting, or mixing materials, making it suitable for diverse industrial needs.
3. Customizable Design: We understand that different applications have unique requirements. That’s why GN offers customized U-Type screw conveyors that can be equipped to handle heating or cooling needs during material conveyance. The design is compact, requiring less space and eliminating the need for a return run.
4. Durable Construction: Our screw conveyors are built to last. They come with robust materials such as wear-resistant 16Mn, hard-facing options, or stainless steel, tailored to your specific application. The gearbox, motors, and bearings are sourced from renowned brands to ensure reliability.
5. Enhanced Lubrication and Maintenance: The middle bearing seat features a wear-resistant shaft sleeve and a lubricating oil cup, allowing for easy maintenance and extended service life of the conveyor.
6. Flexible Connectivity: The GN U-Type Screw Conveyor is designed with standard flange connections for inlets and outlets, but we can accommodate various connection modes based on user requirements.

Applications Across Industries

The GN U-Type Screw Conveyor is versatile and can be employed in numerous sectors, including:

• Environmental Waste Management: Efficient handling of waste materials.
• Oil & Gas Industry: Conveying materials in demanding environments.
• Construction: Handling bulk materials on-site.
• Grain Industry: Moving and processing grain efficiently.
• Chemical and Pharmaceutical Engineering: Safe and precise material handling.
• Mining: Robust solutions for heavy-duty material transport.
• Food & Beverage: Meeting hygiene and material handling standards.
• Power and Metallurgy Plants: Reliable bulk material handling in energy production.
• Coal Industry: Handling coal efficiently and safely.

Technical Specifications

Our U-Type Screw Conveyors come in various models, tailored to different capacities and power requirements:

• GNSC10B-24: 10-inch screw diameter, 24 ft length, 15 tons/hour capacity, 4 kW motor power.
• GNSC12B-48: 12-inch screw diameter, 48 ft length, 20 tons/hour capacity, 11 kW motor power.
• GNSC18B-48: 18-inch screw diameter, 48 ft length, 55 tons/hour capacity, 22 kW motor power.

(Note: The specifications can be customized based on client requirements.)

Advanced Manufacturing

At GN Separation, we utilize state-of-the-art machinery in our manufacturing process, including advanced CNC machines, lather cutting machines, and robotic welding systems. This ensures precision and quality in every screw conveyor we produce.

For more information or to discuss your specific needs, please contact us. GN Separation looks forward to helping you with your bulk material handling challenges.

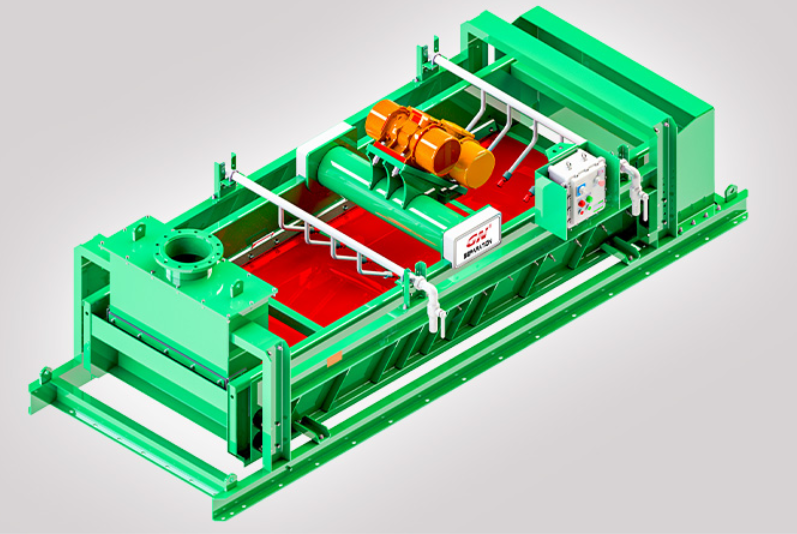

At GN Separation, we’re committed to delivering solutions for material processing. One of our standout porduct is the High Frequency Vibrating Screen, designed to tackle the challenges of wet screening, classification, and dewatering fine-grained materials across various industries, including mineral and coal preparation.

Innovative Design for Superior Performance

Our High Frequency Vibrating Screen is a testament to GN’s engineering prowess. Utilizing the two-degree-of-freedom resonance principle, this self-developed product employs a dual vibration motor setup to create linear vibrations across the entire screen. This design enhances the efficiency and effectiveness of the screening process, making it ideal for fine-grained materials.

Key Features

• Large Screening Area: With options ranging from 2.1 to 5.6 square meters, our screens are designed to handle various processing capacities, ensuring you get the performance you need.
• Adjustable Screen Box Angle: The screen box angle can be adjusted from 0 to 3°, allowing for flexibility in operation and improved performance.
• Compact Structure: Despite its powerful performance, the screen features a compact and sturdy build that is easy to integrate into existing systems.
• High Screening Efficiency: With a vibration frequency of 25Hz and a linear vibration amplitude of 2-3mm, our screen offers high efficiency and a large processing capacity.

Durability and Reliability

The GN High Frequency Vibrating Screen is designed for longevity and reliability:

• Polyurethane Screen Mesh: Equipped with high-quality polyurethane screen mesh, known for its durability, high elasticity, and wear resistance. The mesh has a high opening rate (28-45%) and an average lifespan exceeding six months.
• Advanced Components: Featuring imported vibration motors from leading brands like Martin or OLI, the screen ensures reliable operation and minimal downtime.
• Robust Construction: The screen box undergoes overall heat treatment to withstand high vibration intensities, while the surface is treated with anti-corrosion paint for enhanced durability.

Technical Specifications

• Models: GNFG1021, GNFG1028, GNFG1232, GNFG1440
• Screen Size: 700×1050 mm to 840×1450 mm
• Mesh Size: 0.045 – 2 mm
• Processing Capacity: Ranges from 3 to 15 cubic meters per hour

Our High Frequency Vibrating Screen is engineered to meet diverse needs, from metallurgical mining to coal and non-ferrous metals industries. The unique structure and advanced technology ensure high screening efficiency, low power consumption, and minimal maintenance.

At GN Separation, we are proud to offer one of the most advanced fine-grained material screening solutions on the market. For more information or to discuss how our High Frequency Vibrating Screen can benefit your operation, please contact us.

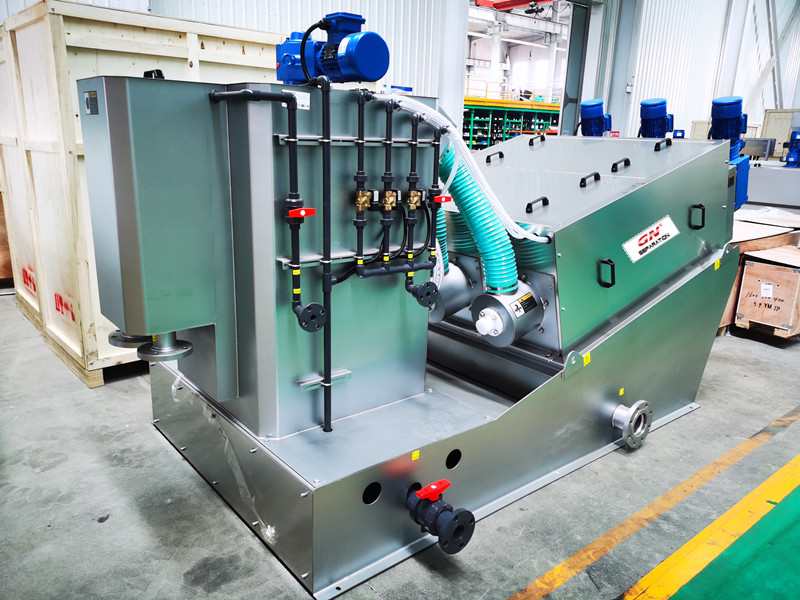

At GN SEPARATION, we are dedicated to providing eco-friendly solutions for industrial waste management. One of our standout offerings is the GN Screw Press Sludge Dewatering Machine—a cutting-edge piece of equipment designed to address the challenges of sludge dewatering in an economical and environmentally responsible manner.

What Makes the GN Screw Press Sludge Dewatering Machine Special?

The GN Screw Press Sludge Dewatering Machine is a revolutionary device that utilizes the principle of screw extrusion to achieve solid-liquid separation. The machine works by applying intense squeezing force, generated by the varying diameter and pitch of the screw, alongside the narrow gap between the floating and fixed rings. This unique design allows for efficient dewatering, making it an ideal solution for industries seeking to reduce sludge volume and moisture content.

Key Features and Benefits

• Broad Applicability: Suitable for a wide range of sludge types, including oily sludge, making it versatile across various industries such as municipal sewage treatment, aquaculture, food processing, pharmaceuticals, and more.
• Continuous Operation: The machine operates automatically and continuously, reducing manual labor and the risk of blockages, which are common in other dewatering systems.
• Cost-Effective: With low investment and operational costs, the GN Screw Press offers a financially viable solution without compromising on performance.
• Environmentally Friendly: Energy-efficient and designed to minimize secondary pollution, this machine supports sustainable practices in waste management.
• Compact Design: The small footprint of the GN Screw Press makes it easy to integrate into existing facilities, saving valuable space.

Advanced Technical Specifications

The GN Screw Press Dewatering Machine comes in a variety of models, each tailored to different capacities and operational needs. For example, the GNDL131 model, with a screw diameter of 130mm, is perfect for handling low-capacity sludge, while the GNDL404 model, with a 400mm diameter and four screws, is designed for high-capacity operations.

• Energy Consumption: The machine is designed to operate with low power consumption, making it an energy-efficient choice compared to traditional dewatering equipment.
• Automation: With advanced automatic control technology, the machine manages flocculation and dewatering processes seamlessly, ensuring consistent performance with minimal human intervention.
• Durability: Constructed from high-quality materials like EN 10088-3 special alloy stainless steel and SS 316L, the GN Screw Press is built to withstand harsh operational conditions and provide long-lasting service.

Versatility in Application

The GN Screw Press Dewatering Machine is not only effective in standard sludge dewatering but is also highly suitable for specialized applications, such as aerobic sludge treatment, which helps prevent phosphorus release—a common issue in anaerobic sludge dewatering.

Why Choose GN SEPARATION?

GN SEPARATION offers a complete range of sludge dewatering solutions, allowing clients to select the most suitable equipment based on specific treatment goals and budget constraints. Moreover, we provide integrated mobile sludge dewatering solutions, customizable to meet unique customer requirements.

Final Thoughts

The GN Screw Press Sludge Dewatering Machine represents the future of sludge management—combining efficiency, environmental responsibility, and cost-effectiveness in one compact system. Whether you’re dealing with municipal wastewater, industrial effluents, or specialized sludge types, GN SEPARATION has the expertise and technology to meet your dewatering needs.

For more information on how the GN Screw Press can revolutionize your sludge management process, or to request a quote, please contact us today. Our team is ready to assist you in selecting the best solution for your operation.
