At GN Separation, we continually push the boundaries of innovation to deliver solutions that meet the complex needs of industries worldwide. Today, we’re excited to introduce one of our products—the GN Large Flip-Flow Vibrating Screen. This powerful screening solution is designed to handle the most challenging materials, offering unparalleled efficiency and performance.

What Makes the GN Large Flip-Flow Vibrating Screen Stand Out?

The GN Large Flip-Flow Vibrating Screen is a sophisticated piece of machinery engineered to optimize the screening process. Its primary components include a box-type exciter, main vibrating screen frame, floating screen frame, shear spring, damping spring, flexible polyurethane screen mesh, support, and driving device. What sets this equipment apart is its linear running amplitude, making it exceptionally effective in various applications.

Key Features:

• Double Mass Near Resonance Principle: The Flip-Flow Vibrating Screen operates on the double mass near resonance principle, which gives the floating screen frame a large amplitude. This allows the screen surface to deliver material with an acceleration of up to 50 G, ensuring thorough and efficient screening even for difficult materials.
• Versatile Application: This screen is particularly suited for dry screening of medium to fine-grained, wet, sticky, and other hard-to-screen materials. The design prevents clogging, enhancing the screening efficiency significantly.
• Robust Design: The screen machine wallboard is made from high-strength alloy steel, with Huck rivets used for hydraulic tension assembly, eliminating welding residual stress. The crossbeam under the screen utilizes a rectangular tube design, while the lightweight, high-strength exciting beam box structure ensures durability and longevity.
• Customizable Amplitude: The amplitude of the floating screen frame can be adjusted by altering the number of shear springs, allowing for fine-tuning based on the material being processed.
• Efficient Exciter: The high-efficiency helical gear box-type exciter provides substantial exciting force with ultra-low noise, stable operation, and a long service life. The eccentric block outside the exciter box enables easy adjustment of the amplitude.

Model Options to Meet Various Needs

The GN Large Flip-Flow Vibrating Screen comes in several models, including the GNFS2461, GNFS3061, GNFS3085, GNFS3673, GNFS3690, and GNFS43100, each offering different screen areas, power, and capacities to suit diverse industrial needs. For instance, the GNFS43100 model provides a screen area of 43 square meters and can handle capacities up to 950 tons per hour.

For more demanding applications, GN Separation also offers double-deck models like the GNFD2461 and GNFD43100, which double the screen area and enhance capacity, making them ideal for heavy-duty operations.

Advanced Design for Superior Performance

Our engineers have meticulously optimized the structure and vibration parameters of the GN Large Flip-Flow Vibrating Screen using finite element analysis. This approach helps avoid natural frequencies at all levels of the screen, reducing the risk of resonance and extending the machine’s service life.

The screen’s flexible polyurethane mesh is installed using a pressing method, simplifying the replacement process. The mesh’s elastic deformation provides a self-cleaning function, effectively preventing clogging, especially with fine, wet, and viscous materials.

The Science Behind the Flip-Flow Vibrating Screen

The working principle of the Flip-Flow Vibrating Screen revolves around double mass near resonance, where a single drive generates double vibrations. The main vibrating screen frame, driven by exciting force, performs basic vibrations. Meanwhile, the floating screen frame and the main vibrating screen frame are connected via a shear spring, moving relative to each other in a near-resonance state.

This relative movement causes the polyurethane screen mesh to stretch and relax continuously, generating a high acceleration that fully throws up and layers the material, ensuring effective screening. The screen can transmit up to 50 G of acceleration to the material, loosening it and ensuring it passes through the screen for efficient separation.

Conclusion

The GN Large Flip-Flow Vibrating Screen is more than just a piece of equipment—it’s a solution to some of the toughest screening challenges faced by industries today. Whether you’re dealing with sticky, wet materials or fine particles that are difficult to screen, this advanced vibrating screen is designed to deliver exceptional performance and durability.

For more details, you can explore the actual operation videos on our website, showcasing the GN Large Flip-Flow Vibrating Screen in action. If you have specific requirements or need further assistance, feel free to contact our team. We’re here to help you find the perfect solution for your material screening needs.

At GN Separation, we pride ourselves on providing cutting-edge solutions for liquid and solid separation across various industries. One of our flagship products, the Slant Plate Clarifier, also known as an inclined plate clarifier, exemplifies our commitment to efficiency and innovation.

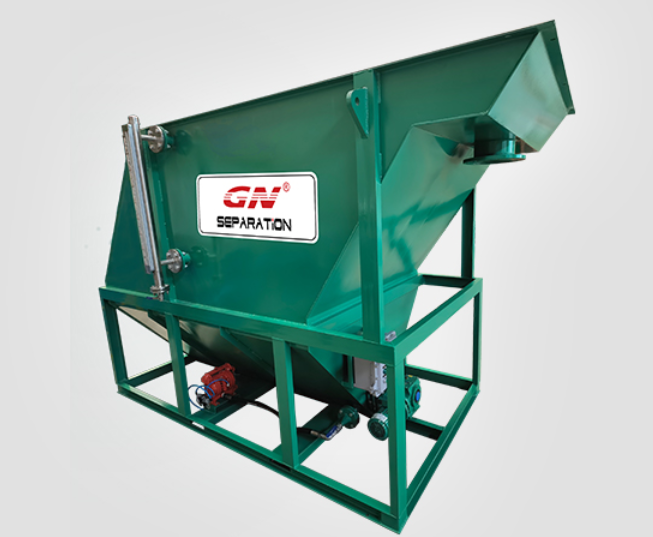

What is a Slant Plate Clarifier?

The Slant Plate Clarifier is a specialized piece of equipment designed to separate solids from liquids with remarkable efficiency. When a mixture of solids and liquid—whether flocculated or not—enters the clarifier, it flows upward through a series of inclined plates. The solids naturally settle on the plate surfaces and slide down into a sludge collection hopper due to gravity. Meanwhile, the clarified liquid passes through orifice holes at the top, exiting the system as clean effluent.

Why Choose GN Separation’s Slant Plate Clarifier?

Our Slant Plate Clarifiers offer several advantages over traditional settling tanks and even more complex equipment like decanter centrifuges. These include:

• Compact Design with Large Effective Settling Area: The inclined plates provide a large effective settling area within a relatively small footprint. This design is not only space-saving but also enhances the separation efficiency.
• Energy Efficiency: Unlike more complex machinery, our Slant Plate Clarifier consumes minimal energy, making it a cost-effective solution for continuous operation.
• Easy Maintenance: With no moving parts except for an auger to transfer sludge, the clarifier requires minimal maintenance, reducing downtime and operational costs.
• Versatility in Operation: The system can function effectively with or without chemical dosing, depending on the specific needs of the application.

Technical Specifications

Our Slant Plate Clarifiers come in various models to suit different operational needs, ranging from the GNIPC-07B with a max flow of 7 m³/h to the GNIPC-273B, which can handle up to 273 m³/h. The models are designed with different inlet and outlet sizes, sludge volumes, and overall dimensions to cater to specific industry requirements.

Key Applications

GN Separation’s Slant Plate Clarifiers are versatile and can be utilized in a wide range of industries, including:

• Potable Water Clarification: Ensuring clean drinking water by efficiently separating suspended solids.
• Industrial Process Water: Treating water used in industrial processes to remove contaminants and recycle clean water back into the system.
• Oil and Gas Industry Wastewater Treatment: Effectively separating oil, grease, and solids from wastewater, ensuring compliance with environmental regulations.
• Sand Filter Backwash Water Treatment: Clarifying the water used in backwashing sand filters, reducing waste and improving efficiency.
• Metal Finishing Wastewater Treatment: Handling the complex mix of contaminants found in wastewater from metal finishing processes.
• Mining Industry: Separating valuable minerals from slurry, ensuring efficient extraction and processing.
• Groundwater Treatment: Clarifying water extracted from underground sources to meet safety and quality standards.
• River Dredging Treatment: Managing the separation of solids from water in dredging operations, essential for environmental protection and navigational safety.
• Other Wastewater Treatment Plants: Providing a reliable solution for various wastewater treatment needs, ensuring clear, reusable water output.

Conclusion

GN Separation’s Slant Plate Clarifier is a robust, efficient, and cost-effective solution for industries looking to optimize their liquid-solid separation processes. With its low energy consumption, ease of maintenance, and wide range of applications, this equipment is an invaluable asset for any operation requiring reliable clarification.

We invite you to explore the possibilities with GN Separation’s Slant Plate Clarifier and see how it can transform your processes. Contact us today to learn more or to discuss your specific needs.

Handling oily sludge is a critical challenge for many industries, including oil refineries, drilling operations, and industrial cleaning processes. GN Separation‘s Oily Sludge Treatment System offers a comprehensive solution designed to efficiently process and manage oily sludge, turning it into valuable resources and minimizing environmental impact.

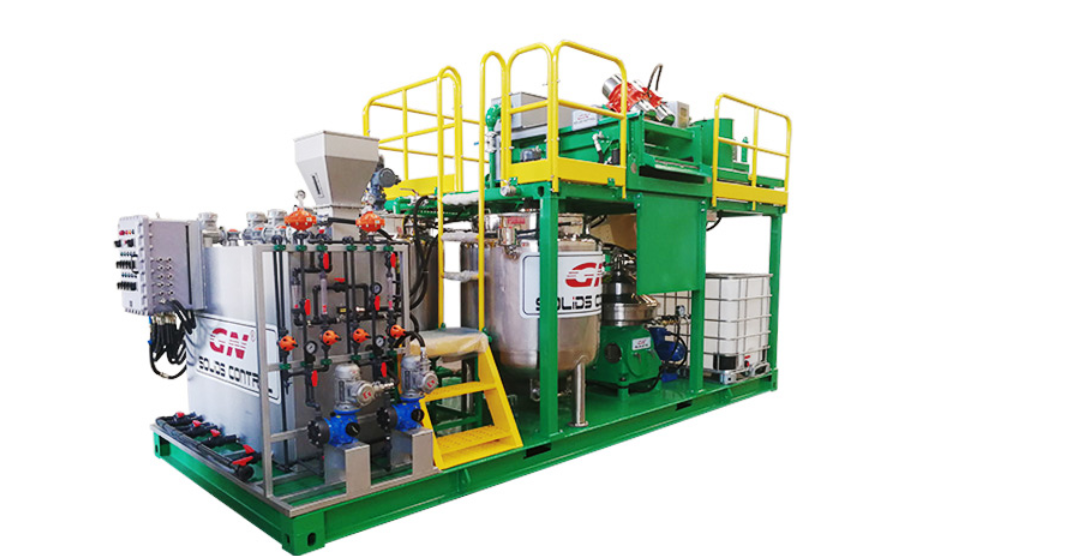

Complete Oily Sludge Treatment Process

GN Separation’s Oily Sludge Treatment System is engineered to handle the entire treatment process of oily sludge, providing users with a robust and reliable solution. Our system encompasses several key stages:

1. Sludge Extraction
   Oily sludge is initially extracted from the sludge pit using GN’s solid vacuum pump or an excavator. This step is crucial for gathering the sludge for further treatment.
2. Heating & Conditioning
   The extracted sludge is then transferred to a pre-mixing tank where it undergoes stirring, pre-mixing, and conditioning. This heating process prepares the sludge for effective separation.
3. Coarse Particle Screening
   Following heating and conditioning, the sludge is treated using a vibrating screen to separate coarse particles. This ensures that larger debris is removed before further processing.
4. Secondary Heating & Conditioning
   The finer particles undergo a secondary conditioning process with the addition of chemical agents. This step strips the oil from the solid phase, allowing it to enter the liquid phase.
5. Solid-Liquid Separation
   The conditioned sludge is then pumped to a two-phase decanter centrifuge. This equipment separates the solid sludge from the liquid, with the resulting solid sludge having less than 2% oil content. This solid can then be further processed or biodegraded.
6. Three-Phase Separation
   Finally, the separated liquid is treated in a three-phase disc separator. This stage separates the oil into a saleable product, extracts usable washing water, and discharges the remaining solid through a flushing pump.

Applications in Various Industries

GN Separation’s Oily Sludge Treatment System is versatile and applicable in various scenarios:

• Oil Refineries: Efficiently manages and processes oily sludge generated during refining operations, reducing waste and recovering valuable resources.
• Drilling Operations: Treats drilling oily sludge, helping to manage waste and ensure compliance with environmental regulations.
• Oil Tank Cleaning: Handles sludge from oil tank cleaning processes, making it easier to dispose of or recycle the waste.
• Industrial Oily Sludge: Provides a comprehensive solution for industrial processes that produce oily sludge, improving waste management and recovery.

Customized Solutions for Your Needs

At GN Separation, we understand that each application is unique. That’s why we offer customized solutions tailored to the specific needs of our customers. By analyzing the characteristics of your oily sludge, we can provide a solution that maximizes efficiency and effectiveness.

For more information or to request a quote, please contact us today. Discover how GN Separation’s Oily Sludge Treatment System can transform your waste management processes and contribute to a cleaner, more sustainable future.

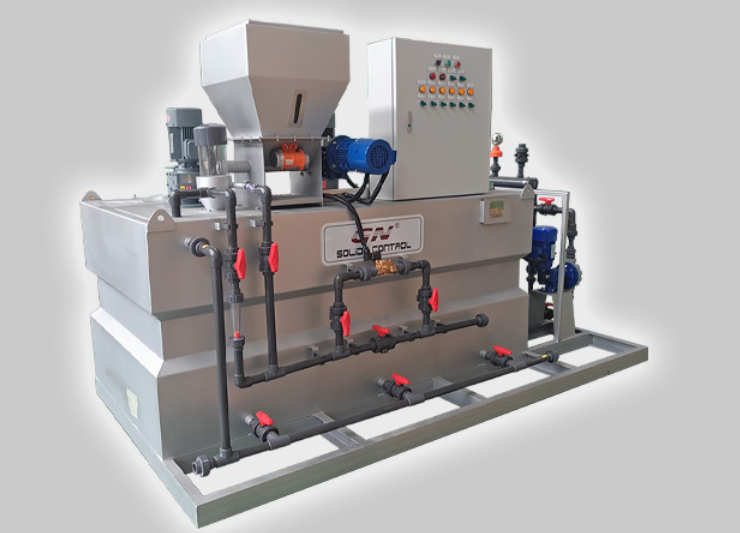

At GN Separation, we take pride in our advanced Chemical Dosing Unit, a critical component of our GN Dewatering System. This sophisticated unit, along with our high-speed dewatering centrifuge, provides an efficient solution for separating fine particles in wastewater, addressing challenges that simple mechanical separation methods cannot overcome.

The Role of Chemical Dosing in Wastewater Treatment

In the wastewater treatment process, separating ultrafine particles is a significant challenge. While mechanical separation can handle particles between 2-5 microns, finer particles require a more advanced approach. This is where our GN Chemical Dosing Unit comes into play. By working in tandem with a high-speed decanter centrifuge, it can effectively separate ultrafine particles, meeting stringent separation requirements.

Features and Advantages of GN Chemical Dosing Unit

Our GN Chemical Dosing Unit is designed with several key features to ensure efficient and reliable operation:

• Compact Structure and Small Size: The unit is designed to save space and fit seamlessly into existing setups.
• Corrosion Resistance: All contact parts are made from engineering plastics or stainless steel, ensuring durability.
• Low Energy Consumption: Efficient operation with minimal energy requirements.
• Easy Operation and Maintenance: User-friendly design for straightforward use and upkeep.
• Versatile Dosing Compartment: Used for stirring, dissolving, and storing flocculants, with precise dosing via the dosing pump.

How the Chemical Dosing Unit Works

The unit’s main box is made of stainless steel and is divided into three compartments: Preparation, Curing, and Storage.

1. Preparation Stage: The operator adds the chemical to the preparation tank.
2. Stirring Dissolving Tank: The mixture of chemical and water is fully stirred and mixed.
3. Curing Dissolving Tank: The mixture undergoes additional stirring and mixing.
4. Dissolved Chemical Storage Tank: The prepared chemical is stored and fed to the dosing point by the dosing pump.

This automated process ensures consistent and efficient chemical preparation and dosing, enhancing the overall wastewater treatment process.

Advanced Configuration and Customization

We offer two types of units tailored to specific needs:

1. Dry Powder Dosing Unit: Includes a stainless steel three-slot cabinet, dosing pump, safety valve, back pressure valve, pressure gauge, buffer, filter, and an explosion-proof control cabinet with PLC smart control.
2. Liquid Solvent Dosing Unit: Comprises a dissolved chemical barrel, dosing pump, safety valve, back pressure valve, pressure gauge, buffer, filter, and an explosion-proof control cabinet.

Both units are designed for high integration, automation, and easy operation. The system is compact, reliable, and designed for stable performance, making it ideal for a variety of dosing applications.

Versatile Applications

Our Chemical Dosing Unit is not limited to wastewater treatment. It can also be used for:

• Adding coagulants, filter aids, disinfectants, acid, and alkali solutions for water treatment.
• Adding corrosion and scale inhibitors in cooling and circulating water systems.
• Dosing various chemicals in industries such as chemical processing, printing, and dyeing.

Conclusion

At GN Separation, we are committed to providing innovative and efficient solutions for wastewater treatment. Our Chemical Dosing Unit is a testament to this commitment, offering advanced capabilities to meet diverse and demanding separation requirements. For more information or to discuss how our systems can benefit your operations, please feel free to contact us directly.

By leveraging our expertise and state-of-the-art technology, we help our clients achieve superior wastewater treatment outcomes, ensuring cleaner and safer water for all.
