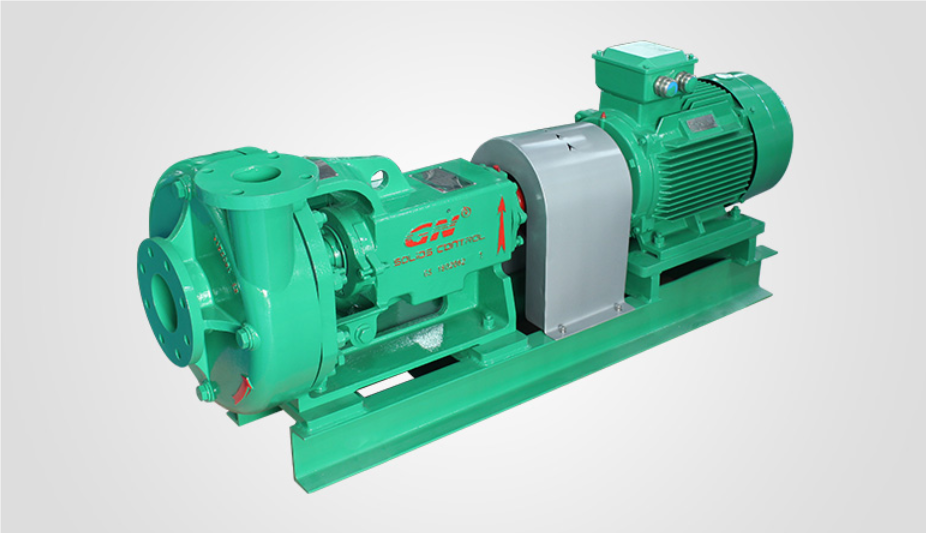

Introducing GN Separation’s GNSB Series Centrifugal Mud Pump: A Comprehensive Solution for Industrial Applications

In the demanding world of industrial operations, efficient and reliable equipment is crucial. GN Separation is proud to offer the GNSB Series Centrifugal Mud Pump, designed to meet the rigorous needs of various industries. Whether you’re involved in drilling, construction, environmental waste management, or mining, the GNSB Series provides an optimal solution for transferring industry slurry and wastewater with solids less than 2mm.

Key Features and Specifications

The GNSB Series Centrifugal Mud Pump stands out for its durability and high performance. It’s engineered to handle high-volume, high-temperature slurries and can manage abrasive and high-viscosity fluids effectively. The pump’s rugged design is field-proven, ensuring reliability in demanding applications.

Here’s a snapshot of the GNSB Series specifications:

  • GNSB8×6C-14J: 320 m³/h flow, 35m lift, 75 kW power, 1450 RPM (50Hz), 14-inch impeller
  • GNSB8×6C-12J: 1750 RPM (60Hz), 12-inch impeller
  • GNSB8×6C-13J: 272 m³/h flow, 35m lift, 55 kW power, 1450 RPM (50Hz), 13-inch impeller
  • GNSB6×5C-13J: 200 m³/h flow, 35m lift, 45 kW power, 1450 RPM (50Hz), 13-inch impeller
  • GNSB5×4C-13J: 120 m³/h flow, 35m lift, 30 kW power, 1450 RPM (50Hz), 13-inch impeller
  • GNSB3×2C-9J: 35 m³/h flow, 35m lift, 7.5 kW power, 1450 RPM (50Hz), 9-inch impeller

All spare parts are interchangeable with NOV Mission Pump, ensuring easy maintenance and parts availability.

Advantages of the GNSB Centrifugal Mud Pump

  1. Standard Spare Parts: Facilitates straightforward maintenance.
  2. Durable Construction: Abrasion-resistant pump casing and impeller made from hard ductile iron alloy.
  3. Improved Bearing Life: Wide open-vane impeller design reduces axial thrust.
  4. Efficient Operation: Concentric design minimizes turbulence and abrasive wear.
  5. Secure Design: Anti-loosening impeller lock bolts prevent damage from incorrect running directions.
  6. Longer Operation Life: Tungsten carbide mechanical seals ensure zero leakage and extended service life.
  7. Replaceable Shaft Sleeve: Protects against complete shaft wear.
  8. Top-Brand Bearings: Utilizes reliable bearings from NSK, FAG, or SKF.
  9. Stable Support: Fully cast pump skid offers better stability compared to welded alternatives, improving the coupling and bearing life.

Applications Across Industries

The GNSB Series Centrifugal Mud Pump is versatile and widely used across various industries, including:

  • Environmental Slurry Treatment: Efficiently handles environmental waste fluids.
  • Wastewater Treatment: Ideal for transferring wastewater with solid content.
  • Mining & Construction Mud Treatment: Suitable for managing mining slurry and construction mud.
  • Chemical and Pharmaceutical Industries: Handles high-viscosity and abrasive fluids.
  • Oil and Gas Industry: Transfers fluids in challenging oil and gas applications.
  • Food and Beverage Industry: Used for specific slurry and waste fluid handling needs.

Conclusion

GN Separation’s GNSB Series Centrifugal Mud Pump is a robust and reliable solution designed to meet the needs of various industrial processes. Its advanced features and proven performance make it an excellent choice for handling demanding slurry and wastewater applications. For more information or to discuss how the GNSB Series can benefit your operations, please contact us.

Let’s Talk About GN Separation’s Solids Vacuum Pumps: The Ultimate Solution for Industrial Sludge and Waste Management

In the world of industrial waste management and sludge handling, GN Separation stands out with our GN Solids Vacuum Pumps. These versatile and efficient machines are designed to tackle a wide range of challenging tasks. Whether you are dealing with thick sludge, mining slurries, or even hazardous waste, our Solids Vacuum Pumps offer robust solutions. In this blog post, we will delve into the features, applications, and benefits of these incredible machines, focusing on one specific application scenario to highlight their effectiveness.

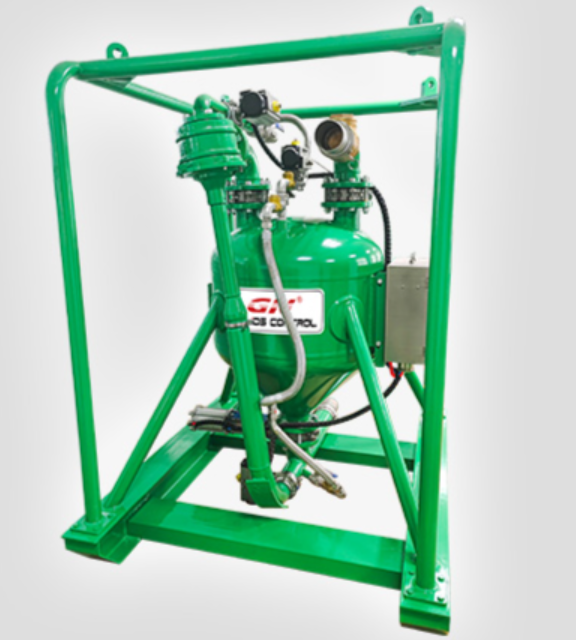

What is a GN Separation Solids Vacuum Pump?

At GN Separation, our GN Solids Vacuum Pump, also known as the sludge vacuum pump, is a specialized vacuum loading solids transfer pump powered entirely by compressed air. It is designed to handle solids, powders, slurries, and sludge with remarkable efficiency. These pumps are compact, robust, and efficient, capable of creating a vacuum of up to 25 inches of mercury and delivering material over distances of up to 1000 meters.

Key Specifications of GN Separation Solids Vacuum Pumps

Here are some of the important parameters for GN Separation’s Solids Vacuum Pumps:

Model Max Capacity Inlet/Outlet Size Vacuum Degree Max Suction Distance Max Discharge Distance Max Solids Content Max Solids Size Pressure Request Air Demand Weight Dimension (L×W×H)
GNSP-40B 40 m³/h 4” (114 mm) 85 Kpa / 25 inch HG 50 m 1000 m 80% Solids Sludge 75 mm 550-785 Kpa (80-114 PSI) 17 m³/min 892 kg 1690 × 1468 × 1983 mm
GNSP-20B 20 m³/h 4” (114 mm) 85 Kpa / 25 inch HG 50 m 500 m 80% Solids Sludge 50 mm 550-690 Kpa (80-100 PSI) 8 m³/min 386 kg 1421 × 900 × 1448 mm
GNSP-10B 10 m³/h 3” (89 mm) 85 Kpa / 25 inch HG 50 m 500 m 80% Solids Sludge 50 mm 550-690 Kpa (80-100 PSI) 4.3 m³/min 320 kg 1283 × 800 × 1370 mm

GN Separation offers these models in various capacities to suit different needs and applications.

Working Principle

The GN Solids Vacuum Pump operates by using compressed air to create a high vacuum inside the pump tank. The vacuum draws in material through the suction line. After a few seconds, the pump switches the direction of the compressed air to create positive pressure, which pushes the material out through the discharge line. This process is highly efficient and can be performed either manually or automatically, depending on the model.

Applications of GN Separation Solids Vacuum Pumps

GN Separation’s Solids Vacuum Pumps are incredibly versatile and are used in a variety of industries for different applications. Here are some of the most common applications:

  • Coal and Mining Slurries Transfer
  • Thickener De-sludge Cleaning
  • Sump, Shaft, and Pipeline Cleaning
  • Drilling Cuttings Transfer
  • Oil Spill Capture and Transfer
  • Hazardous Waste Recovery and Transfer

In the following sections, we will explore one of these applications in detail: Thickener De-sludge Cleaning.


Application Spotlight: Thickener De-sludge Cleaning

What is Thickener De-sludge Cleaning?

Thickeners are crucial in various industries for separating solids from liquids. Over time, thickened sludge accumulates at the bottom of the thickener tank and needs to be removed to maintain efficiency. GN Separation’s Solids Vacuum Pumps are specifically designed for this task, offering an efficient and effective solution for de-sludging operations.

Advantages of Using GN Separation Solids Vacuum Pumps for Thickener De-sludge Cleaning

  1. Efficient Sludge Removal

    GN Separation’s Solids Vacuum Pumps can handle up to 80% solids content and can transfer sludge with a maximum size of 75 mm. This high capacity allows them to quickly and effectively remove accumulated sludge from thickener tanks, which helps maintain optimal operation.

    • Example: The GNSP-40B model, with a capacity of 40 m³/h, can efficiently manage large volumes of sludge, ensuring that the thickener remains operational and efficient.
  2. Long-Distance Transfer

    These pumps can discharge material up to 1000 meters, making them ideal for transferring sludge from the thickener to a storage area or disposal site without the need for additional equipment.

    • Example: For a large-scale mining operation, the GNSP-40B can transfer thickened sludge from a distant thickener to a processing facility or disposal site.
  3. Compact and Robust Design

    GN Separation’s Solids Vacuum Pumps are designed to be compact and durable, which allows them to operate effectively in challenging environments and tight spaces.

    • Example: The GNSP-20B model, with a compact size of 1421 × 900 × 1448 mm, is ideal for use in confined spaces around the thickener tank.
  4. Automatic and Manual Modes

    The GNSP-40B model supports both manual and automatic operation modes, providing flexibility depending on the specific needs of the de-sludging process.

    • Example: During routine maintenance, the GNSP-40B can be operated manually for precise control, while for continuous operations, it can switch to automatic mode for efficiency.
  5. Explosion-Proof Capability

    The vacuum pump operates solely on compressed air, which means it is safe for use in explosive environments like those found in coal and oil industries.

    • Example: In a coal mining facility where there is a risk of explosive gases, the GN Solids Vacuum Pump provides a safe and reliable solution for sludge removal.

Conclusion

GN Separation’s Solids Vacuum Pump is an essential tool for various industrial applications, particularly for thickener de-sludge cleaning. Its efficient sludge handling capabilities, long-distance transfer potential, and robust design make it an ideal choice for maintaining the efficiency of thickening operations.

Whether you are dealing with coal mining slurries, hazardous waste recovery, or de-slicking tasks, GN Separation offers a reliable and effective solution with our high-performance equipment for challenging industrial tasks.

Learn More About GN Separation’s Solids Vacuum Pumps

For more information on GN Separation’s Solids Vacuum Pumps and their applications, visit our website or contact us directly.

Exploring GN Separation’s Dewatering System: Versatile Applications Across Different Industries

In the world of wastewater treatment, the challenge of effectively separating fine particles is a common one. GN Separation’s advanced Dewatering System offers a comprehensive solution to this problem, combining a Chemical Dosing Unit and a High-Speed Decanter Centrifuge to achieve superior results. In this blog, we will explore how this cutting-edge technology is applied across various industries, highlighting its effectiveness and versatility.


What is the GN Dewatering System?

The GN Dewatering System consists of two main components:

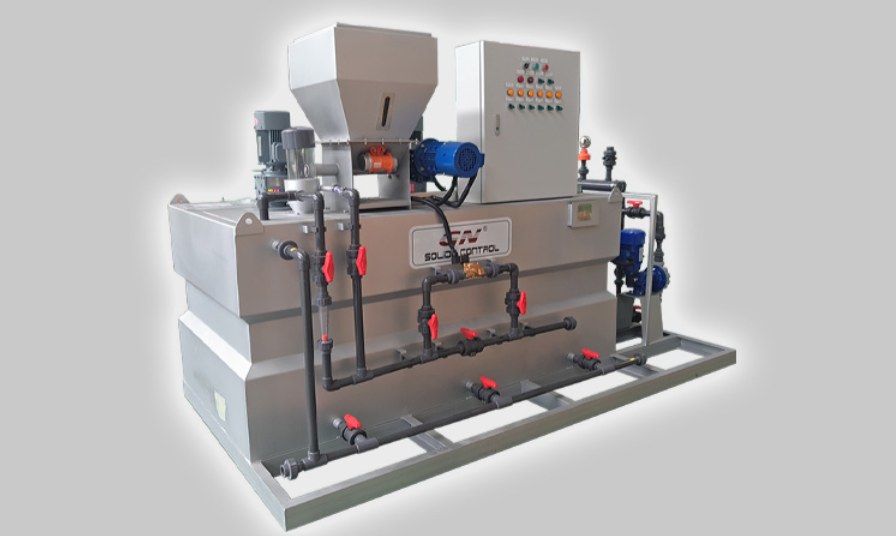

1. Chemical Dosing Unit: This unit prepares and doses chemicals necessary for the flocculation process, ensuring the effective aggregation of fine particles.2.Dewatering Centrifuge: The centrifuge separates the flocculated particles from the water, concentrating the solid waste while producing clean water.

Chemical Dosing Unit Features:

  • Compact and Corrosion-Resistant: Made from stainless steel and engineering plastics for durability.
  • Automated Control: PLC-controlled for precise chemical dosing and process monitoring.
  • Versatile: Suitable for powders, granular materials, and liquid chemicals.
  • Efficient Operation: Low energy consumption and easy maintenance.

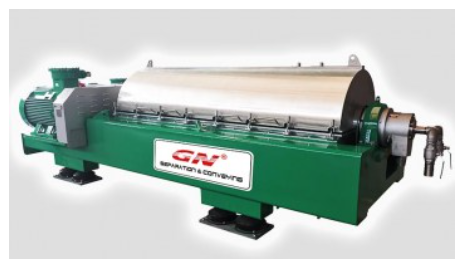

Dewatering Centrifuge Features:

  • High-Speed Performance: Capable of separating ultrafine particles, achieving high separation efficiency.
  • Stable Operation: Designed for reliable, continuous operation in demanding environments.

Industry Applications of the GN Dewatering System

1. Municipal Wastewater Treatment

Municipal wastewater treatment plants are often tasked with managing large volumes of water that contain a wide range of contaminants, including fine particulates.

  • Application: The GN Dewatering System is used to handle municipal sewage sludge. The Chemical Dosing Unit adds flocculants to aggregate fine solids, which are then efficiently separated by the Decanter Centrifuge.
  • Benefits: This system improves sludge dewatering efficiency, reduces disposal costs, and helps meet regulatory requirements for treated water quality.

Example: A city’s wastewater treatment facility employs the GN Dewatering System to manage the fine particles in sludge, improving the quality of treated water and enhancing the overall efficiency of the treatment process.

2. Industrial Wastewater Treatment

Industrial processes in sectors like manufacturing, mining, and oil & gas produce wastewater with high concentrations of fine particles and contaminants.

  • Application: In industries such as mining and oil extraction, the GN Dewatering System is used to process tailings and other wastewater by-products. The system’s ability to handle fine particles makes it ideal for dealing with the by-products of industrial processes.
  • Benefits: Effective management of industrial wastewater, reducing environmental impact and facilitating the recycling of water.

Example: A mining company uses the GN Dewatering System to manage and treat wastewater from mineral processing, ensuring that the water released into the environment meets environmental standards.

3. Food and Beverage Industry

The food and beverage industry generates wastewater that often contains fine solids from production processes.

  • Application: The GN Dewatering System is employed in the food and beverage industry for the treatment of process water and wastewater, including the separation of fine particles from fruit and vegetable processing waste.
  • Benefits: Helps in maintaining clean production environments and managing waste products more effectively.

Example: A fruit juice manufacturing plant uses the GN Dewatering System to separate fine particles from the wastewater generated during juice extraction and cleaning processes.

4. Chemical and Pharmaceutical Industries

The chemical and pharmaceutical industries require high-precision wastewater treatment processes due to the presence of fine particles and hazardous substances.

  • Application: In these industries, the GN Dewatering System processes wastewater from chemical reactions and pharmaceutical production. The Chemical Dosing Unit adjusts the chemical composition to target specific contaminants, while the Decanter Centrifuge separates the treated particles from the liquid.
  • Benefits: Ensures compliance with stringent regulations and improves the safety of wastewater disposal.

Example: A pharmaceutical company uses the GN Dewatering System to manage wastewater from drug manufacturing processes, achieving high levels of purification and meeting environmental discharge standards.

5. Oil & Gas Industry

Oil & gas operations generate wastewater that contains fine particles from drilling and production activities.

  • Application: The GN Dewatering System is used for the treatment of produced water and drilling muds, separating fine solids and recovering water for reuse.
  • Benefits: Enhances the efficiency of water treatment processes and supports sustainable resource management.

Example: An oil field uses the GN Dewatering System to treat produced water, enabling the recycling of water and reducing the environmental impact of oil extraction activities.

6. Paper and Pulp Industry

The paper and pulp industry produces wastewater with high concentrations of fine fibers and chemicals.

  • Application: The GN Dewatering System is applied to the treatment of wastewater from paper mills, where it separates fine fibers and contaminants from the process water.
  • Benefits: Improves water reuse and helps manage the environmental impact of paper production.

Example: A paper mill uses the GN Dewatering System to treat wastewater from the pulp washing process, reducing the amount of waste sent to disposal and improving water recovery.


Conclusion

The GN Dewatering System, with its Chemical Dosing Unit and High-Speed Decanter Centrifuge, offers a robust solution for separating fine particles in wastewater across a variety of industries. Its advanced features, including high efficiency, automation, and corrosion resistance, make it a valuable tool for both municipal and industrial applications.

From municipal wastewater treatment to specialized industrial processes, the GN Dewatering System proves its versatility and effectiveness. By addressing the challenge of fine particle separation, GN Separation supports industries in achieving environmental compliance, improving operational efficiency, and advancing sustainable practices.

For more information on how the GN Dewatering System can benefit your industry, contact us or visit our website.

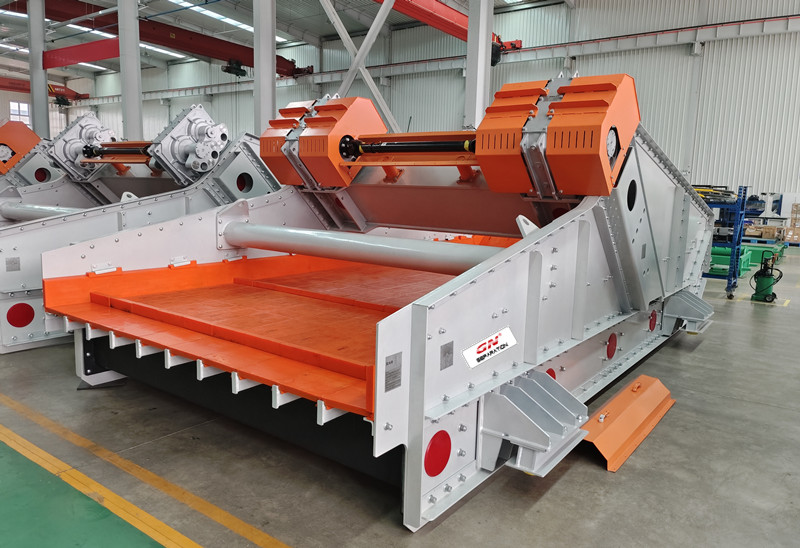

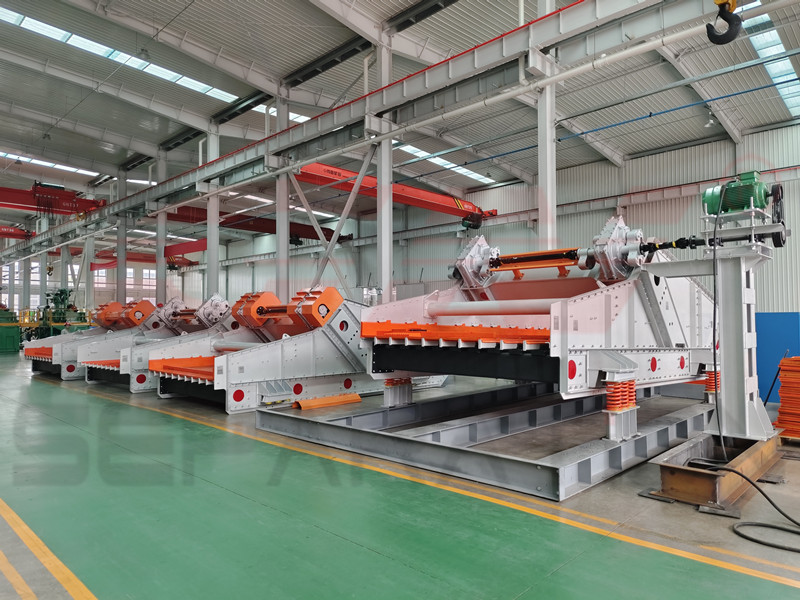

GN Separation: Large Linear Vibrating Screen GNLS3061 Ready for Shipping to Domestic Iron Mine

We are excited to announce that four units of the GNLS3061 Large Linear Vibrating Screen are ready for shipment to a domestic iron mine! This significant milestone underscores our commitment to delivering high-quality, efficient equipment tailored to meet the diverse needs of our customers in the mining and mineral processing industries.

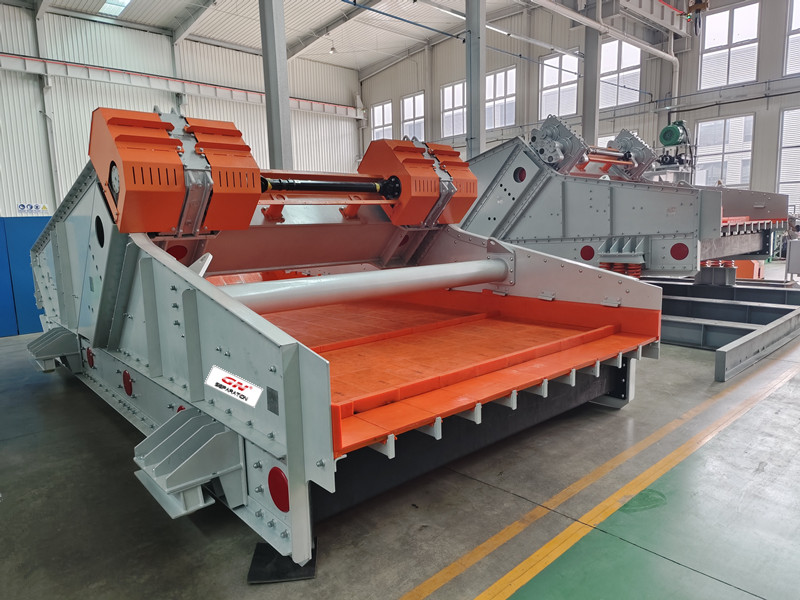

Overview of GNLS3061 Large Linear Vibrating Screen

The GNLS3061 is a robust and versatile large linear vibrating screen designed to handle various bulk material processing tasks. Here’s a closer look at what makes this model a standout choice for mining and industrial applications:

1. High Screening Efficiency and Versatility

The GNLS3061 offers a substantial screen area of 18.3 m², making it suitable for high-capacity applications. This model is part of our large linear vibrating screen series, which includes other models such as GNLS2461, GNLS3661, GNLS3673, GNLS4361, and GNLS4373, catering to a range of capacities and screen area requirements.

2. Advanced Design Features

The GNLS3061 features advanced design elements that enhance its performance and longevity:

  • Durable Construction: The screen machine is constructed from high-strength alloy steel plate with superior impact toughness. Instead of welding, the plate is assembled using imported Huck rivets, which eliminates welding residual stress and improves the screen’s durability.
  • Optimized Structure: Finite element analysis has been used to optimize the structure and vibration parameters of the screen, reducing resonance and extending the service life of the machine.
  • Efficient Vibration System: The screen is equipped with a high-efficiency helical gear box type exciter. This exciter generates a large exciting force with minimal noise, ensuring stable operation and a long service life. The amplitude can be adjusted by changing the counterweight setting on the eccentric block.
  • Robust Beam Design: The cross beam under the screen uses a rectangular tube design for high strength and good toughness. Additionally, the surface of the beam is sprayed with polyurea for wear resistance, and rubber parts protect against erosion and wear in high-impact areas.
  • Modular Screen Panels: The polyurethane screen panels are modular, making them versatile and easy to replace.

3. Working Principle

The GNLS3061 operates based on the principle of forced synchronization. Two gear box vibrators create a linear back-and-forth motion, which drives the screen surface to vibrate. This vibration causes the materials on the screen to move, allowing for effective screening, grading, and separation.

Materials are fed into the screen through a feeding trough, where they are subjected to the vibrating screen’s action. The materials are classified based on particle size, with the finer particles passing through the screen and the larger particles being conveyed to the next process.

The angle between the vibration direction and the horizontal plane can be adjusted based on the material properties and site requirements, which influences the processing capacity and efficiency of the equipment.

4. Technical Specifications

Here are some key technical specifications for the GNLS3061 model:

  • Screen Area: 18.3 m²
  • Vibration Direction Angle: 45°
  • Vibration Frequency: 14–16 Hz
  • Power: 30 kW
  • Double Amplitude: 7–10 mm
  • Mesh Size: 0.2–25 mm
  • Capacity: 80–300 t/h
  • Installation Inclination:

These specifications ensure that the GNLS3061 can meet a variety of operational requirements in the mining, mineral processing, and other industrial sectors.

A Step Forward for the Domestic Iron Mine

The delivery of these four GNLS3061 units represents a significant advancement for the domestic iron mine. With their enhanced screening capabilities, these screens will play a crucial role in optimizing the iron ore processing operations, improving efficiency, and contributing to the overall success of the mining project.

We are proud to support the domestic mining industry with state-of-the-art equipment and look forward to the positive impact these screens will have at the iron mine.

Contact Us for Your Screening Needs

If you are interested in learning more about the GNLS3061 or any of our other products, please feel free to contact us for more information. Our team is ready to assist you with your equipment needs and provide customized solutions for your specific applications.

Thank you for choosing GN Separation. We are committed to delivering the best products and services to our valued customers!
