1.Project introduction

The origin of the material is from sand in a wastewater flow

Material Temperature is 25 celicius & 28-29 celcius

The density of the material is Around 2000 kg/m3

The customer requested treatment capacity is 2-3 m3/h

The height between the material and pump is 15 feet

The distance between the material and pump is 20 feet

The challenge and problem of the current situation is currently they use labor to take sand out from the forebay tank of the mini hydro power plant.

The process or equipment is being used on location at present and the performance now is they use manual labor, wheelbarrows, hoes and baskets to fill and take out sand from the forebay tank. The process takes one and half days to finish completely.

The project budget is about Rs. 3 million LKR.

2. GN recommended sludge vacuum pump model is GNSP-10B.

2.1Brief introduction

Sludge vacuum pump, also named as solids transfer pump. It is a type of pneumatic pump that sucks the material with vacuum produced by air operation, and then converts to positive pressure for discharging.Most of the solids, sludge and liquid could be transferred by using this pump. With special structure design of no rotating parts in the cavity, it can be used at tough environmental with high working performance and less maintenance. The pump can transfer material with high gravity and high density, solids content max.up to 80%. It has following features: the high efficiency venturi device can produce vacuum up to 25 inch HG(Mercury Column). This is equivalent to vacuum of 85Kpa to suck the material. The pump structure is simple and compact, almost none of wear parts. The transfer distance is up to 500-1000 meters.

2.2 Advantages of GN sludge vacuum pump.

Air operation, no need electric power, suitable for hazardous area application.

Powerful self-suction with long transfer distance. Suction distance up to 50 meters, discharge distance up to 500-1000meters.

Widely application for transferring liquid, wet sludge and solids.

Transferred solids size Maximum50 mm or 75 mm, sludge solids content up to 80%.

Compact structure for easy to move.

None of rotating parts inside the cavity, less wearing for long lifetime.

Automatically and continuously working is available with easy operation and maintenance.

1.Project Introduction

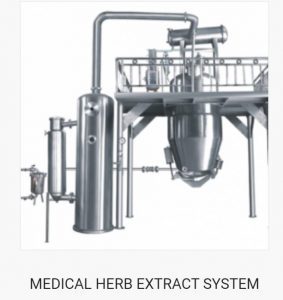

1.1 Makeup of Original Material:Solid in extraction liquid

1.2Solid Particle Size Distribution:1-50 micromet

1.3 Final user Required Hourly max Capacity:1.5m3/h

1.4 Liquid Composition:No explosion, liquid is water and ethanol

1.5 Customer required electric system specification:220V/380V

1.6 Site Location:No. 37 DC7 street, Son kyward, Tan Phu Dist, HCMC Viet Nam

1.7 Final user name: GOLD SEAL MACHINERY CO.LTD

2.GN Tubular Centrifuge model GNGQ142G introduction

2.1 High Speed Tubular Centrifuge is a kind of fine separation equipment, which is especially suitable for the solid-liquid separation of suspensions with thin concentration, fine particles and small solid-liquid weight difference, or liquid-liquid-solid separation. It is necessary equipment for Industries of pharmaceutical, food, chemical, and biological products, fermentation broth, beverages, blood products, etc.

High Speed Tubular Centrifuges is artificial slag removal equipment, and the processing capacity is limited, so it is generally used for working conditions with low solid content and relatively small processing capacity.(GNGQ) Clarification Type Tubular Centrifuge

2.2 The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted by the electric control panel), and the feeding inlet is continuously fed from the bottom, and a certain feeding pressure (greater than 0.05Mpa) is required.

The specific gravity of liquid phase in the feeding inlet is lighter, and it gradually spirals upward from bottom to top to continuously discharge from the clear liquid outlet at the upper part of the rotor.

2.3. The specific gravity of solid phase is relatively heavier, and it settles inside the rotor. After the solid is collected and full in the drum, the machine stops, and the rotor is manually removed for slag cleaning.

2.4. After the slag removal is completed, the rotor needs to be installed and reset, and then the next separation process begins.

This process can achieve solid-liquid separation.

1.Project introduction.

1.1Design Capacity: Total Mass Flow (Metal Slurry) : 12.5 ton/hr ;Liquid Flow : 10.4~8.8 ton/hr;Solid Flow : 2.1~4 ton/hr

1.2Inlet Condition: Operating Temperature : 60 degC；Operating Pressure : Max. 3.5 kg/cm2g, Nor. 1.5~2.5 kg/cm2g；Operating Time : 24 hours per day, Continuous；Solid Concentration : 20~30 wt%

1.3 Liquid Phase Information:Component : water (99.7%)；pH : 11~13；Viscosity : Less than 5 cP；Density : 1,040 kg/m3

1.4 Solid Phase Information:Component : Metal Particle Size : 10 micron meter (D50)；Density : 4,400 kg/m3；Type of Solid : Sticky and wetted、

2.After separation process target:

Product Specification: Solid Recovery : 99%；Moisture contents : Less than 28%；Type of Cake : Stackable.



3.GN recommened Decanter centrifuge mode威而鋼
l: GNLW364ET-VDF

3.1 Introduction:

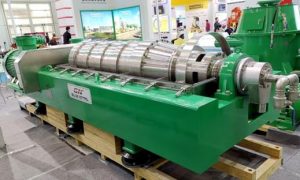

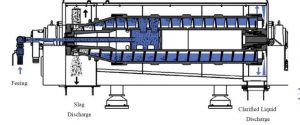

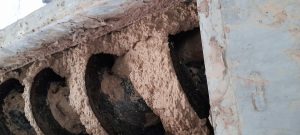

GN dewatering / Thickening decanter centrifuge is T series decanter centrifuge with beach angle of 8.5 degrees. GN T series decanter centrifuge is usually used dewatering and thickening purpose. It is widely used for maximum dewatering requirements of municipal and industrial wastewater sludge. The dewatering decanter centrifuge is designed for easy separation material include large particle size, high density difference of solid and liquid, low viscosity, high concentration, high treatment capacity and higher dryness than clarity. The materials like sludge or wastewater containing fine particles usually need to be added with flocculants to gather the fine particles condensed into large ones, and then dewatered with T series decanter centrifuge.

3.2Appliaction Arena or fields

Drilling mud, environmental protection sewage, oily sludge, cutting fluid, sand washing water, mineral washing water, soda white mud, salt mud dewatering, magnesium aluminum emulsion, steel-making wastewater, precision casting wastewater, construction mud, tunnel mud, mine wastewater, industrial wastewater, organic wastewater, aquaculture wastewater, chemical industrial wastewater, printing and dyeing wastewater, municipal sewage, river sludge, water plant sludge, lake sludge, kaolin grading, calcium carbonate, bentonite, Silica, titanium dioxide, calcium sulfate, barium sulfate, conductive film glass polishing solution, aluminum hydroxide, cryolite, silicate, oil sand separation, landing oil, oil sludge, coal tar, inorganic fertilizer, Chinese medicine extraction such as taxus chinensis, honeysuckle and liquorice, clarification, concentration and dehydration of salt crystals, etc

1.Project introduction.

1.1Project holder：The company was established in 2005, with professionalism, safety, and service as the foundation. It is mainly engaged in oil tank cleaning related projects. It is the best choice among environmental cleaning companies. It upholds the spirit of service and has a professional team. Dayichang is based on professionalism , safety and service . It mainly focuses on oil tank cleaning related projects. The principle of mutual benefit, to create mutual benefit value and future.Introduce foreign advanced technology of unmanned tank cleaning], and use technology to meet the various needs of customers in the real world.

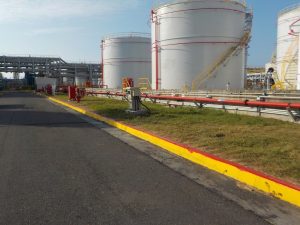

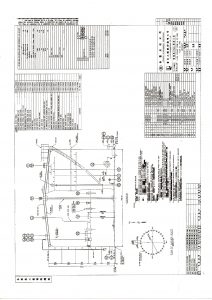

1.2Project details: Used for 84 metres Tank cleaning, crude oil tank, light oil tank, chemical tank, underground storage tank, overall planning and construction and internal and external renovation projects.

2.GN oil sludge vacuum pump.

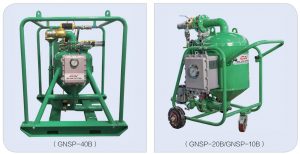

The chosen Model is GNSP-40B and GNSP-10B GN oil sludge vacuum pump.Sludge vacuum pump, also named as solids transfer pump. It is a type of pneumatic pump that sucks the material with vacuum produced by air operation, and then converts to positive pressure for discharging.Most of the solids, sludge and liquid could be transferred by using this pump. With special structure design of no rotating parts in the cavity, it can be used at tough environmental with high working performance and less maintenance. The pump can transfer material with high gravity and high density, solids content max.up to 80%. It has following features: the high efficiency venturi device can produce vacuum up to 25 inch HG. This is equivalent to vacuum of 85Kpa to suck the material. The pump structure is simple and compact, almost none of wear parts. The transfer distance is up to 500-1000meters.
