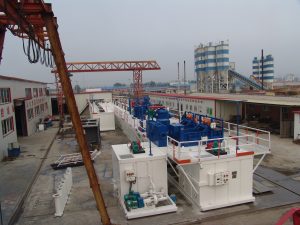

The GND series is a mud recovery system designed for micro tunnels and piling. Recently at GN’s China headquarters, a complete mud recovery system has just been completed and shipped to domestic customers in China.
GN Solids Control is the world’s leading manufacturer of solids control equipment and mud recovery systems. As a leading manufacturer of shale shakers, mud cleaners, decanter centrifuges, cutting dryers, centrifugal pumps, etc., GN’s brands and products are available. More and more international customers are recognized.
The ND system consists of a two-layer mud shaker, two hydrocyclones, a centrifugal pump, a tank and an electrical control system. The system can effectively separate solids and liquids, reduce the solid waste content in the drilling mud, make the cuttings drier, easy to transport, environmentally friendly and easy to handle. The entire system is very compact and armored, very economical and value for money. The first stage separation of the system is a two-layer mud vibrating screen. When the mud enters the lower layer of the screen, large solids will be separated from the mud. Fine solids and mud will fall into the tank, and the mud will pass through the centrifuge. The pump draws in two hydrocyclones that work like a sand remover to separate the solids size to 40 microns. The solids separated by the hydrocyclone will fall onto the upper deck of the shale shaker and the solids will be further dried for disposal. The clean mud separated by the hydrocyclone will fly back to the tank and be pumped back to the wellbore for reuse and recycling. The basic configuration of the mud recovery system is a two-layer mud shaker, two hydrocyclones for sand removal, a centrifugal pump, a mud tank and some other components. Visit our website at www.gnsolidsamerica.com for more information, please send your questions to USA@gnsolidscontrol.com.
