500GPM mud cleaning system is the very tipical size for No Dig drilling rig. GN just finished 2 sets 500GPM No Dig mud cleaning system to CPP and ready for delivery next week.

Why A Mud Cleaning System Wil Be Required For Drilling Rig?

1. To separate drilling cuttings our from drilling mud, so that it can be re-used to save cost
2. To add new chemicals and keep mud suitable density and viscosity
3. Environment requirement make you hard to get rid of dirty mud only clean water

Standard Parts And Requirement For No Dig Mud Cleaning System From CPP

1. One set GNZS703 shale shaker with max 7.5 G force and 3 pc shaker screen
2. One set GNZJ703 mud cleaner with one desander cone and 8 desilter cones
3. 2 sets centrifugal pump sit on tank sid for mud transfer
4. One set mud tank with compact desigh for small footprint
5. Walkways and handrails that can be folded on tank side
6. Control panels fix on tank without disassemble when moving

Please visit GN Web for details equipment spec and more news

Derrick can be a well know solids manage firm regarding the globe, focus on the shaker screen, centrifuges for oil gas, mining, civil engineering. It’s not so proficiently recognized in micro tunneling regardless of the truth that.
The well-known supplier in China is GN Solids Manage that is also only concentrate on most important great good quality solids deal with gear, might nicely be the significant competitor of Derrick in future.

The model FLC 423/ 424 mud cleaner is undoubtedly a compact design and style and style for tunneling. Double deck shaker, also Bigger G shaker motor, and pyramid shaker screen.
The major difference is now operating with POLYURETHANE SCREENS:
1. Superior capacity and efficiency with higher open areas of 35-45%
2. Decreased operating and upkeep costs from extended life and ease
of installation
3. Accessible with openings as fine as 75 microns (200 mesh)
4. Anti-blinding properties let for uninterrupted general functionality

The Chinese supplier GN Solids Manage, also functioning with high G shaker screen motor, although robust steel shaker screen.

And identical as all other suppliers, the feeding technique is actually somewhat diverse as standard single deck:
1. The box feeder evenly spreads the flow of drilling fluid across the
shaker screen.
2 When feeding the bottom deck initially for key screening, the drilling
fluid and fine drilled solids pass by way of one’s screen panel apertures into
a sump for collection and feed to hydrocyclones.
3 Hydrocyclones execute a secondary, finer separation and recovered
solids (underflow) are gravity fed towards the prime deck for added dewatering.

Not like Derrick item, GN Solids Handle is supplying a total answer, the desanding plant includes: the shaker screen, cyclone feeding pump, also as the way recycling, not just a distinctive feeding, visit here to know more.

http://www.gnsolidsamerica.com/shale-shaker-screen.html

http://apishakerscreen.com/search/shaker+screen

http://www.mudcentrifuge.com/search/shaker+screen

.

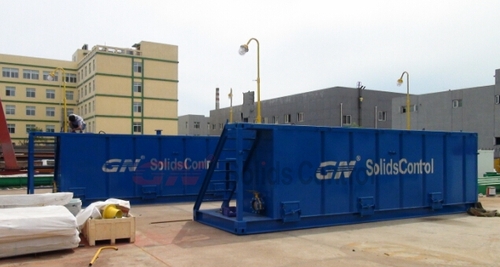

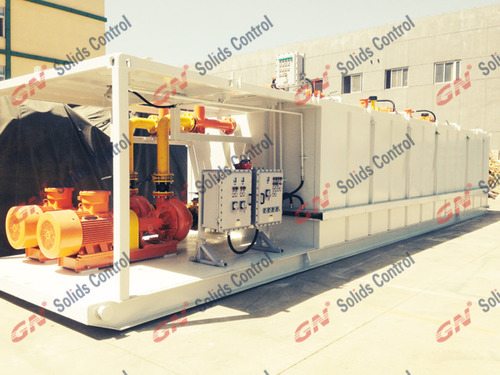

1000HP drilling rig will require solids control equipment for drilling mud recycling and storage. GN just finished one set to Poland end of last month.

Before design a set of solids control system, you need confirm bellowing questions:

1. Mud flow requirement. This need confirm to choose shale shaker and desander desilter
2. If vacuum degasser required
3. How many set of decanter centrifuge require
4. High speed decanter centrifuge or middle speed or both?
5. Mud tank holding capacity needed
6. Mud tank dimention limit and requirement
7. Mud tank compartment required
8. Jobsite layout and jard limit to design mud tank layout
9. Mud suction line size and outlet position to suilt mud pump
10. If need tank roof or not
11. Other special request

GN Solids is one of the leading solids control eqipment suppllier, please contact us freely for inquiry or techinical.

desander, Shale shaker,desilter produced by GN solids control can be used for solids removal projects, whatever the project is, if only you need to remove big solids from the fluids/mud/slurry, these equipments can help. Depends on the different mesh size, the shale shaker can separate different points. In the traditional solids control system, shale shaker can separate 400 microns, desander can dispose sands and some small waste, desilter cone can separate 25 microns and decanter centrifuge is the last cleaning phase which can separate fine solids up to 2 microns.

For non- solids control projects, if you would like to analyse if desander can be used for your projects, you need to answer the questions below:

1 What is the biggest solids size in the slurry/fluids?

2 What is the minimum solids size remained in the desander?

3 What is the solids content by weight?

4.all desander Manual also is GN desander Codes & Standards?

Extra questions will be required according to different application. Welcome to contact GN solids America.
